Integrate in minutes, not months.

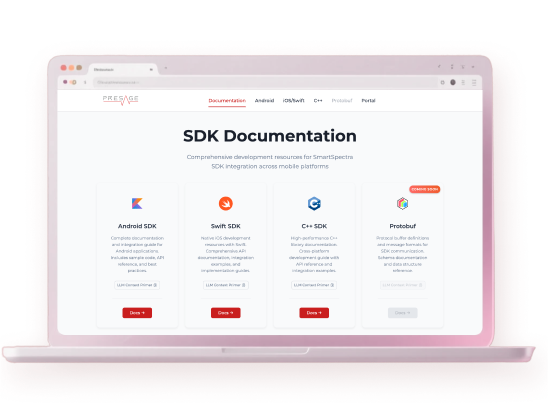

Our SmartSpectra SDK provides robust wrappers for every major platform. Start extracting vitals with just a few lines of code. Just load up your favorite AI coding tools and you are on your way.

Fast manual SmartSpectra Swift setup using an API key.

Use this if you want the fastest manual path.

What you will change manually

You will touch exactly these things:

1. The app target package dependencies

2. The app target camera permission

3. Cool Vitals/ContentView.swift

You do not need to create any new Swift files.

Result you should get

At the end, the app should show:

Status and Validation at the top

live camera preview

pulse rate, breathing rate, HRV RMSSD, and expression cards

white labels for those four cards

confidence-colored pulse and breath-rate values

one large arterial pressure waveform

chest and abdomen breathing waveforms

guidance text below the breathing waveforms

one portrait screen with no scrolling

Register for your free API Key

Create an Account

1. Navigate to the Presage Developer Admin Service Portal

2. Click **Register** and fill in your email, password, and other required fields.

3. Check your email for a confirmation link and follow it to activate your account.

Log In

1. Go to the Presage Developer Admin Portal Login

2. Enter your email and password, then click **Submit**.

3. After successful login you will be redirected to your Portal page, where you can manage your API key.

Step 1 — Create the project

In Xcode, create a new iOS app project:

1. Select File → New → Project...

2. Choose iOS → App

3. Set Product Name to Cool Vitals

4. Set Interface to SwiftUI

5. Set Language to Swift

6. Save the project

If you already created the project, open it instead.

In Finder, open:

Cool Vitals/Cool Vitals.xcodeproj

Then select the app target in Xcode.

Step 2 — Add the SmartSpectra package

In Xcode:

1. Click File → Add Package Dependencies...

2. Paste https://github.com/Presage-Security/SmartSpectra-Swift/

3. For repeatable builds, choose Exact Version and enter a released tag such as 3.0.0

4. Use Branch → main only when testing the latest final public release before pinning a version

5. Add the package to the Cool Vitals app target

Manual check:

In the project navigator, you should now see Package Dependencies

SmartSpectra should be attached to the app target

Step 3 — Add camera permission

In Xcode:

1. Select the Cool Vitals target

2. Open the Info tab

3. Add a new key named Privacy - Camera Usage Description

**NOTE:** Ctrl + Click on the Custom iOS Target Properties and click Add Row

4. Set the value to This app needs camera access to measure vitals.

Manual check:

The app target now has a camera usage description

Step 4 — Replace `ContentView.swift`

In Xcode:

1. Open Cool Vitals/ContentView.swift

2. Delete everything in the file

3. Paste the full file below

4. Replace YOUR_API_KEY with your real API key

**NOTE:** Login or Register at the Presage developer portal for your API Key

Paste this entire file:

swift

import SwiftUI
import SmartSpectra
import AVFoundation

struct ContentView: View {
    private enum TraceWindow {
        static let rate = 120
        static let arterialWaveform = 240
        static let breathingWaveform = 180
    }

    private let sdk = SmartSpectraSDK.shared

    @State private var didAutoStart = false
    @State private var pulseRateBuffer: [MeasurementWithConfidence] = []
    @State private var breathingRateBuffer: [MeasurementWithConfidence] = []
    @State private var arterialPressureBuffer: [MeasurementWithConfidence] = []
    @State private var chestBuffer: [SmartSpectra.Measurement] = []
    @State private var abdomenBuffer: [SmartSpectra.Measurement] = []
    @State private var latestHrv: Hrv?
    @State private var latestExpressionScores: [ExpressionScore] = []

    init() {
        sdk.config.apiKey = "YOUR_API_KEY"
        sdk.config.cameraPosition = .front
        sdk.config.imageOutputEnabled = true
        sdk.config.requestedMetrics =
            SmartSpectraConfig.breathingMetrics +
            SmartSpectraConfig.cardioMetrics + [
                .expressions,
            ]
    }

    private enum WaveformProminence {
        case primary
        case secondary
    }

    private var metrics: Metrics? { sdk.metrics }

    private var metricsUpdateToken: Int64 {
        [
            metrics?.cardio.pulseRate.last?.timestamp,
            metrics?.breathing.rate.last?.timestamp,
            metrics?.cardio.arterialPressureTrace.last?.timestamp,
            metrics?.breathing.upperTrace.last?.timestamp,
            metrics?.breathing.lowerTrace.last?.timestamp,
            metrics?.cardio.hrv.last?.timestamp,
            metrics?.face.expression.last?.timestamp,
        ]
        .compactMap { $0 }
        .max() ?? 0
    }

    private var pulseRateText: String {
        formatMetric(pulseRateBuffer.last.map { Double($0.value) }, digits: 0, suffix: " bpm")
    }

    private var breathingRateText: String {
        formatMetric(breathingRateBuffer.last.map { Double($0.value) }, digits: 0, suffix: " bpm")
    }

    private var hrvText: String {
        guard let value = latestHrv?.rmssd, value > 0 else { return "--" }
        return formatMetric(value, digits: 1, suffix: " ms")
    }

    private var latestExpressionScore: ExpressionScore? {
        latestExpressionScores.max(by: { $0.confidence < $1.confidence })
    }

    private var latestExpressionLabel: String {
        guard let score = latestExpressionScore else { return "--" }
        let name = String(expressionName(score.type).prefix(8))
        let paddedName = name + String(repeating: " ", count: max(0, 8 - name.count))
        let percent = confidenceText(score.confidence)
        let paddedPercent = String(repeating: " ", count: max(0, 4 - percent.count)) + percent
        return "\(paddedName) \(paddedPercent)"
    }

    private var pulseConfidenceColor: Color {
        confidenceColor(pulseRateBuffer.last?.confidence)
    }

    private var breathingConfidenceColor: Color {
        confidenceColor(breathingRateBuffer.last?.confidence)
    }

    private var arterialPressureSamples: [Double] {
        arterialPressureBuffer.map { Double($0.value) }
    }

    private var chestSamples: [Double] {
        chestBuffer.map { Double($0.value) }
    }

    private var abdomenSamples: [Double] {
        abdomenBuffer.map { Double($0.value) }
    }

    private var statusText: String {
        switch sdk.processingStatus {
        case .idle: return "Idle"
        case .starting: return "Starting"
        case .running: return "Running"
        case .stopping: return "Stopping"
        case .error: return "Error"
        @unknown default: return "Unknown"
        }
    }

    private var validationTitle: String {
        guard let validationStatus = sdk.validationStatus else { return "Waiting" }
        return validationName(validationStatus.code)
    }

    private var statusColor: Color {
        switch sdk.processingStatus {
        case .running: return .green
        case .starting, .stopping: return .orange
        case .error: return .red
        case .idle: return .gray
        @unknown default: return .gray
        }
    }

    private var validationColor: Color {
        guard let validationStatus = sdk.validationStatus else { return .gray }
        switch validationStatus.code {
        case .ok: return .green
        case .cameraTuning: return .orange
        default: return .yellow
        }
    }

    var body: some View {
        GeometryReader { geometry in
            let compact = geometry.size.height < 820
            let horizontalPadding: CGFloat = compact ? 12 : 16
            let topSpacing: CGFloat = compact ? 8 : 12
            let previewHeight = min(max(geometry.size.height * 0.26, 190), 250)

            VStack(spacing: topSpacing) {
                statusBar(compact: compact)
                    .zIndex(1)

                previewCard
                    .frame(height: previewHeight)
                    .zIndex(0)

                HStack(spacing: topSpacing) {
                    metricCard(
                        title: "Pulse Rate",
                        value: pulseRateText,
                        valueColor: pulseConfidenceColor,
                        accent: .red,
                        compact: compact
                    )
                    metricCard(
                        title: "Breathing Rate",
                        value: breathingRateText,
                        valueColor: breathingConfidenceColor,
                        accent: .cyan,
                        compact: compact
                    )
                }
                .frame(maxHeight: compact ? 82 : 92)

                HStack(spacing: topSpacing) {
                    metricCard(
                        title: "HRV RMSSD",
                        value: hrvText,
                        valueColor: .white,
                        accent: .mint,
                        compact: compact
                    )
                    metricCard(
                        title: "Expression",
                        value: latestExpressionLabel,
                        valueColor: .white,
                        accent: .orange,
                        compact: compact,
                        monospacedValue: true
                    )
                }
                .frame(maxHeight: compact ? 82 : 92)

                waveformCard(
                    title: "Arterial Pressure",
                    samples: arterialPressureSamples,
                    accent: .purple,
                    compact: compact,
                    prominence: .primary
                )
                .frame(height: compact ? 154 : 182)

                HStack(spacing: topSpacing) {
                    waveformCard(
                        title: "Chest Waveform",
                        samples: chestSamples,
                        accent: .cyan,
                        compact: compact,
                        prominence: .secondary
                    )
                    waveformCard(
                        title: "Abdomen Waveform",
                        samples: abdomenSamples,
                        accent: .blue,
                        compact: compact,
                        prominence: .secondary
                    )
                }
                .frame(height: compact ? 130 : 146)
            }
            .padding(.horizontal, horizontalPadding)
            .padding(.vertical, compact ? 10 : 14)
            .background(backgroundGradient.ignoresSafeArea())
        }
        .task {
            await startIfNeeded()
        }
        .task(id: metricsUpdateToken) {
            mergeCurrentMetrics()
        }
    }

    private var previewCard: some View {
        ZStack {
            if let image = sdk.imageOutput {
                Image(uiImage: image)
                    .resizable()
                    .aspectRatio(contentMode: .fill)
                    .frame(maxWidth: .infinity, maxHeight: .infinity)
                    .clipped()
            } else {
                LinearGradient(
                    colors: [Color(red: 0.16, green: 0.24, blue: 0.46), Color.black],
                    startPoint: .topLeading,
                    endPoint: .bottomTrailing
                )
                VStack(spacing: 10) {
                    Image(systemName: "camera.viewfinder")
                        .font(.system(size: 40, weight: .semibold))
                    Text("Camera preview will appear here")
                        .font(.headline)
                }
                .foregroundStyle(.white.opacity(0.92))
            }

            LinearGradient(
                colors: [.black.opacity(0.68), .black.opacity(0.12), .clear],
                startPoint: .bottom,
                endPoint: .top
            )
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .clipShape(RoundedRectangle(cornerRadius: 26, style: .continuous))
        .overlay(
            RoundedRectangle(cornerRadius: 26, style: .continuous)
                .stroke(.white.opacity(0.12), lineWidth: 1)
        )
        .shadow(color: .black.opacity(0.35), radius: 18, x: 0, y: 10)
    }

    private func statusBar(compact: Bool) -> some View {
        HStack(spacing: compact ? 8 : 10) {
            badge(title: "Status", value: statusText, color: statusColor)
            badge(title: "Validation", value: validationTitle, color: validationColor)
            Spacer(minLength: 8)
            Button(action: toggleMeasurement) {
                Text(sdk.processingStatus == .running ? "Stop" : "Start")
                    .font(.caption.bold())
                    .padding(.horizontal, compact ? 14 : 18)
                    .padding(.vertical, 10)
                    .background(.white, in: Capsule())
                    .foregroundStyle(.black)
            }
        }
    }

    private func metricCard(
        title: String,
        value: String,
        valueColor: Color,
        accent: Color,
        compact: Bool,
        monospacedValue: Bool = false
    ) -> some View {
        VStack(alignment: .leading, spacing: compact ? 6 : 8) {
            HStack(spacing: 6) {
                Circle()
                    .fill(accent)
                    .frame(width: 8, height: 8)
                Text(title)
                    .font(.caption.weight(.semibold))
                    .foregroundStyle(.white)
            }

            Text(value)
                .font(.system(size: compact ? 21 : 24, weight: .bold, design: monospacedValue ? .monospaced : .rounded))
                .foregroundStyle(valueColor)
                .monospacedDigit()
                .lineLimit(1)
                .minimumScaleFactor(0.7)
        }
        .dashboardCard()
    }

    private func waveformCard(
        title: String,
        samples: [Double],
        accent: Color,
        compact: Bool,
        prominence: WaveformProminence
    ) -> some View {
        VStack(alignment: .leading, spacing: compact ? 6 : 8) {
            VStack(alignment: .leading, spacing: 2) {
                Text(title)
                    .font(.caption.weight(.semibold))
                    .foregroundStyle(.white)
            }

            ZStack {
                RoundedRectangle(cornerRadius: 14, style: .continuous)
                    .fill(accent.opacity(0.12))

                if samples.count > 1 {
                    WaveformView(
                        samples: samples,
                        strokeColor: accent,
                        verticalPaddingFraction: prominence == .primary ? 0.14 : 0.08
                    )
                    .padding(prominence == .primary ? 8 : 10)
                }
            }
            .frame(maxHeight: .infinity)
            .overlay(
                RoundedRectangle(cornerRadius: 14, style: .continuous)
                    .stroke(accent.opacity(0.3), lineWidth: 1)
            )
        }
        .dashboardCard()
    }

    private func badge(title: String, value: String, color: Color) -> some View {
        HStack(spacing: 6) {
            Circle()
                .fill(color)
                .frame(width: 8, height: 8)
            Text("\(title): \(value)")
                .font(.caption.weight(.semibold))
        }
        .padding(.horizontal, 10)
        .padding(.vertical, 8)
        .background(.white.opacity(0.12), in: Capsule())
        .foregroundStyle(.white)
    }

    private func mergeCurrentMetrics() {
        guard let metrics else { return }

        if !metrics.cardio.pulseRate.isEmpty {
            pulseRateBuffer.appendProtoArray(contentsOf: metrics.cardio.pulseRate)
            pulseRateBuffer = Array(pulseRateBuffer.suffix(TraceWindow.rate))
        }

        if !metrics.breathing.rate.isEmpty {
            breathingRateBuffer.appendProtoArray(contentsOf: metrics.breathing.rate)
            breathingRateBuffer = Array(breathingRateBuffer.suffix(TraceWindow.rate))
        }

        if !metrics.cardio.arterialPressureTrace.isEmpty {
            arterialPressureBuffer.appendProtoArray(contentsOf: metrics.cardio.arterialPressureTrace)
            arterialPressureBuffer = Array(arterialPressureBuffer.suffix(TraceWindow.arterialWaveform))
        }

        if !metrics.breathing.upperTrace.isEmpty {
            chestBuffer.appendProtoArray(contentsOf: metrics.breathing.upperTrace)
            chestBuffer = Array(chestBuffer.suffix(TraceWindow.breathingWaveform))
        }

        if !metrics.breathing.lowerTrace.isEmpty {
            abdomenBuffer.appendProtoArray(contentsOf: metrics.breathing.lowerTrace)
            abdomenBuffer = Array(abdomenBuffer.suffix(TraceWindow.breathingWaveform))
        }

        if let hrv = metrics.cardio.hrv.last {
            latestHrv = hrv
        }

        if let scores = metrics.face.expression.last?.scores, !scores.isEmpty {
            latestExpressionScores = scores
        }
    }

    private func resetBuffers() {
        pulseRateBuffer.removeAll(keepingCapacity: true)
        breathingRateBuffer.removeAll(keepingCapacity: true)
        arterialPressureBuffer.removeAll(keepingCapacity: true)
        chestBuffer.removeAll(keepingCapacity: true)
        abdomenBuffer.removeAll(keepingCapacity: true)
        latestHrv = nil
        latestExpressionScores.removeAll(keepingCapacity: true)
    }

    private func toggleMeasurement() {
        Task {
            if sdk.processingStatus == .running || sdk.processingStatus == .starting {
                try? await sdk.stop()
            } else {
                resetBuffers()
                try? await sdk.start()
            }
        }
    }

    private func startIfNeeded() async {
        guard !didAutoStart else { return }
        didAutoStart = true
        guard sdk.processingStatus == .idle else { return }
        resetBuffers()
        try? await sdk.start()
    }

    private func confidenceText(_ confidence: Float?) -> String {
        guard let confidence, confidence.isFinite else { return "--" }
        let percent = min(max(Double(confidence), 0), 100)
        return "\(Int(percent.rounded()))%"
    }

    private func confidenceColor(_ confidence: Float?) -> Color {
        guard let confidence, confidence.isFinite else { return .white.opacity(0.65) }
        let percent = min(max(Double(confidence), 0), 100)
        switch percent {
        case 85...:
            return .green
        case 60..<85:
            return .yellow
        default:
            return .red
        }
    }

    private func formatMetric(_ value: Double?, digits: Int = 0, suffix: String = "") -> String {
        guard let value else { return "--" }
        if digits == 0 {
            return "\(Int(value.rounded()))\(suffix)"
        }
        return String(format: "% .\(digits)f", value).replacingOccurrences(of: " ", with: "") + suffix
    }

    private func validationName(_ code: ValidationCode) -> String {
        switch code {
        case .ok: return "OK"
        case .noFaceFound: return "No Face"
        case .multipleFacesFound: return "Multi Face"
        case .faceNotCentered: return "Off Center"
        case .faceSizeOutOfRange: return "Face Size"
        case .tooDark: return "Too Dark"
        case .tooBright: return "Too Bright"
        case .chestNotVisible: return "Chest Missing"
        case .cameraTuning: return "Tuning"
        @unknown default: return "Unknown"
        }
    }

    private func expressionName(_ type: ExpressionType) -> String {
        switch type {
        case .unspecified: return "Unspecified"
        case .angry: return "Angry"
        case .contempt: return "Contempt"
        case .disgust: return "Disgust"
        case .fear: return "Fear"
        case .happy: return "Happy"
        case .neutral: return "Neutral"
        case .sad: return "Sad"
        case .surprise: return "Surprise"
        case .UNRECOGNIZED(_): return "Unknown"
        @unknown default: return "Unknown"
        }
    }

    private var backgroundGradient: LinearGradient {
        LinearGradient(
            colors: [
                Color(red: 0.03, green: 0.05, blue: 0.12),
                Color(red: 0.07, green: 0.09, blue: 0.18),
                Color.black,
            ],
            startPoint: .topLeading,
            endPoint: .bottomTrailing
        )
    }
}

private struct WaveformView: View {
    let samples: [Double]
    let strokeColor: Color
    let verticalPaddingFraction: Double

    var body: some View {
        GeometryReader { geometry in
            Path { path in
                guard samples.count > 1 else { return }

                let minValue = samples.min() ?? 0
                let maxValue = samples.max() ?? 1
                let rawRange = max(maxValue - minValue, 0.0001)
                let padding = rawRange * verticalPaddingFraction
                let lowerBound = minValue - padding
                let upperBound = maxValue + padding
                let range = max(upperBound - lowerBound, 0.0001)

                for (index, sample) in samples.enumerated() {
                    let x = geometry.size.width * CGFloat(index) / CGFloat(samples.count - 1)
                    let normalized = (sample - lowerBound) / range
                    let y = geometry.size.height * (1 - normalized)

                    if index == 0 {
                        path.move(to: CGPoint(x: x, y: y))
                    } else {
                        path.addLine(to: CGPoint(x: x, y: y))
                    }
                }
            }
            .stroke(strokeColor, style: StrokeStyle(lineWidth: 2.2, lineCap: .round, lineJoin: .round))
        }
    }
}

private extension View {
    func dashboardCard() -> some View {
        self
            .padding(12)
            .background(
                RoundedRectangle(cornerRadius: 20, style: .continuous)
                    .fill(Color.white.opacity(0.08))
            )
            .overlay(
                RoundedRectangle(cornerRadius: 20, style: .continuous)
                    .stroke(Color.white.opacity(0.08), lineWidth: 1)
            )
    }
}

Step 5 — Build and run on a phone

In Xcode:

1. Choose a physical iPhone as the run destination

2. Build and run the app

3. Allow camera access when iOS asks

4. Wait a few seconds for camera tuning and signal stabilization

Do not use the simulator.

What success looks like

If the install is correct, you should see all of these:

Status and Validation chips are visible at the top

the preview is below the chips

the arterial pressure waveform is larger than the breathing waveforms

chest and abdomen waveforms both appear on screen

the guidance text is below those waveforms

the pulse and breath-rate numbers change color with confidence

expressions and HRV are reported

Expected log note for API key mode

This log is expected in API key mode and is not a failure:

PresageService-Info.plist not found. OAuth authentication will be disabled. Using API key authentication instead.

Common manual mistakes

If the screen does not match the target state, check these first:

the package was added to the wrong target

ContentView.swift was only partially replaced

YOUR_API_KEY was not replaced with a real key

the app is still running an older installed build on the phone

the app was run in the simulator instead of on a real device

Ready for OAuth

Full OAuth setup guide and sample code →

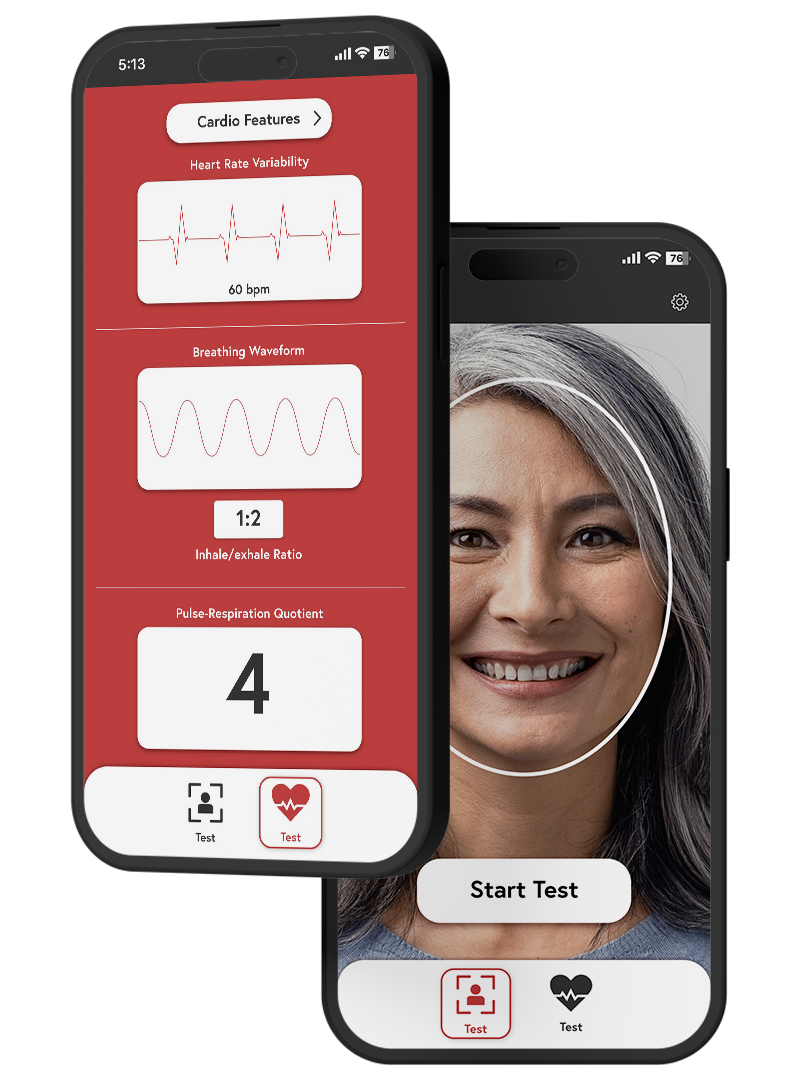

How it works

From camera to vitals, in real time.

Point a camera

Any phone, laptop, or webcam. No wearables, no contact, no calibration.

Detect signals

Subtle color and motion shifts in skin and chest — invisible to the eye, processed on-device.

Extract vitals

Pulse, respiration, HRV, and stress — high-precision accuracy in real time.

Stream anywhere

Anonymized metrics flow to your app or LLM in real time via SDK or REST.

Capabilities

Discover what you can measure.

Vital Signs & Breathing

Heart rate & HRV
Respiratory rate
Blood pressure changes (cuffless)
Pulse waveform

Facial Expressions & Speech

Emotion recognition
Micro-expressions
Lip & speech activity
Blink rate & eye tracking
Facial action units

Frequently Asked Questions

Everything you need to know before you build.

faq.md

questions

answer.txt1/8

## What is SmartSpectra and how does it work?

SmartSpectra is a contactless health-sensing SDK that turns any camera into a real-time biometric sensor. It tracks facial and chest movements to extract anonymized health metrics including pulse rate, breathing rate, HRV, and more — all without wearables or physical contact.

Still have questions? Email sales@presagetech.com.
